Read High Switches and Loop

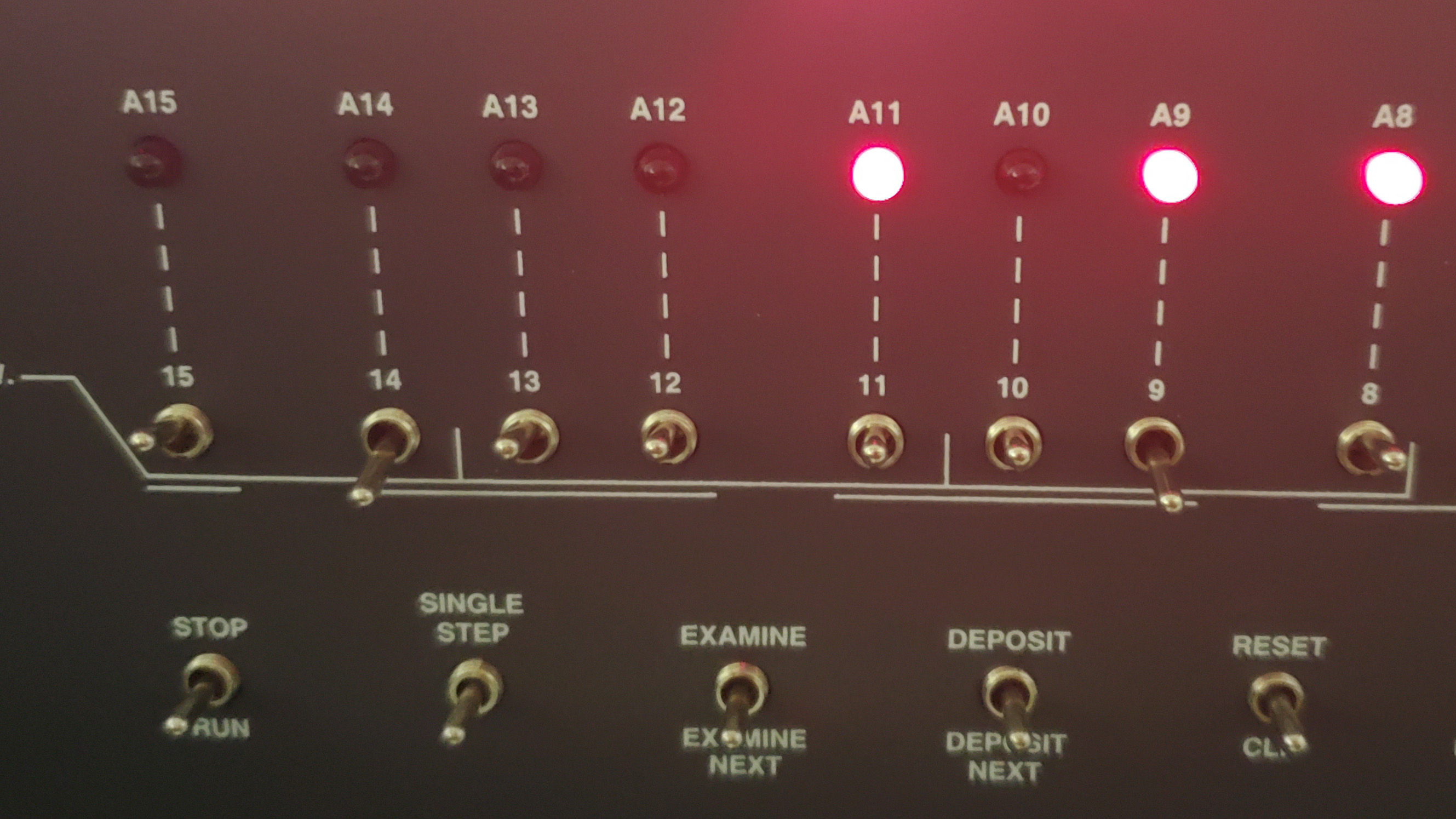

Front panel when running an address loop read from high switches

Notes:This image shows a program running that reads the values of the top four sense switches (12-15) and displays their values on the lower four Address LEDs (A8 - A11) .

Description: A picture of the front panel of the Altair 8800 Clone computer. it shows the top 8 address LEDs and the top 8 switches. Switch 15, 13, and 12 are up while 14 is down and the A11, A9 and A8 LEDs are on while A10 is off.
